6J11.10 - Vision defects and correction

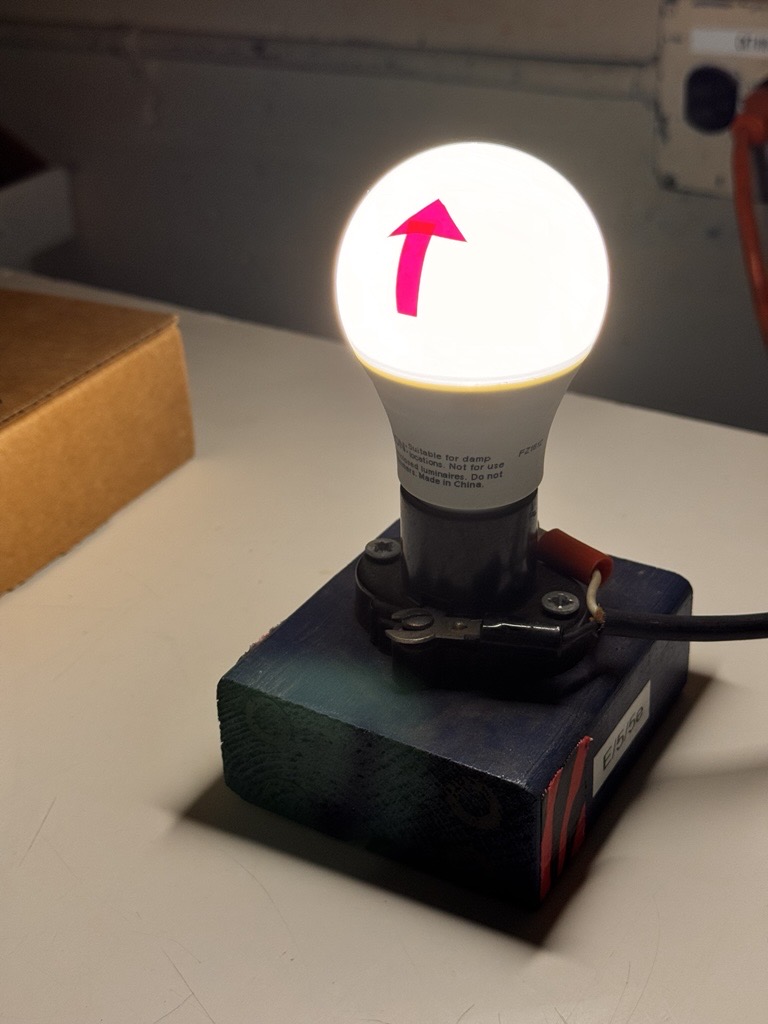

Light source lighting up asymmetric object ( upward facing arrow)
Light source lighting up asymmetric object ( upward facing arrow)
PASCO human eye model with varied lens
PASCO human eye model with varied lens

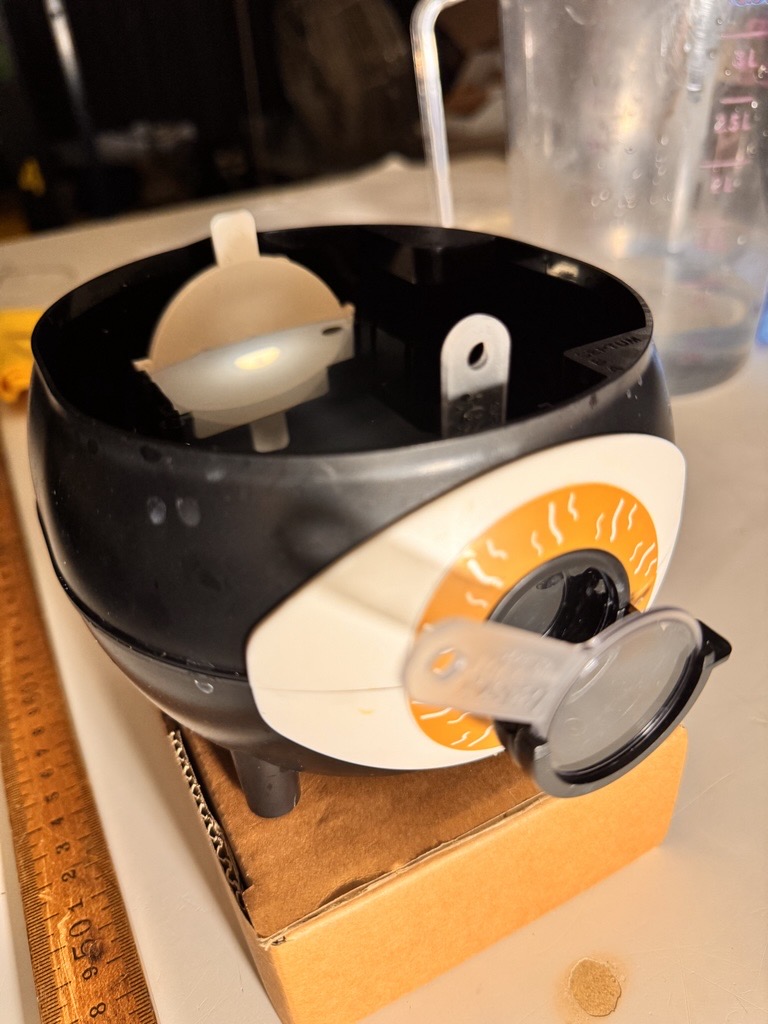

Nearsightedness and corrective lens
Nearsightedness and corrective lens

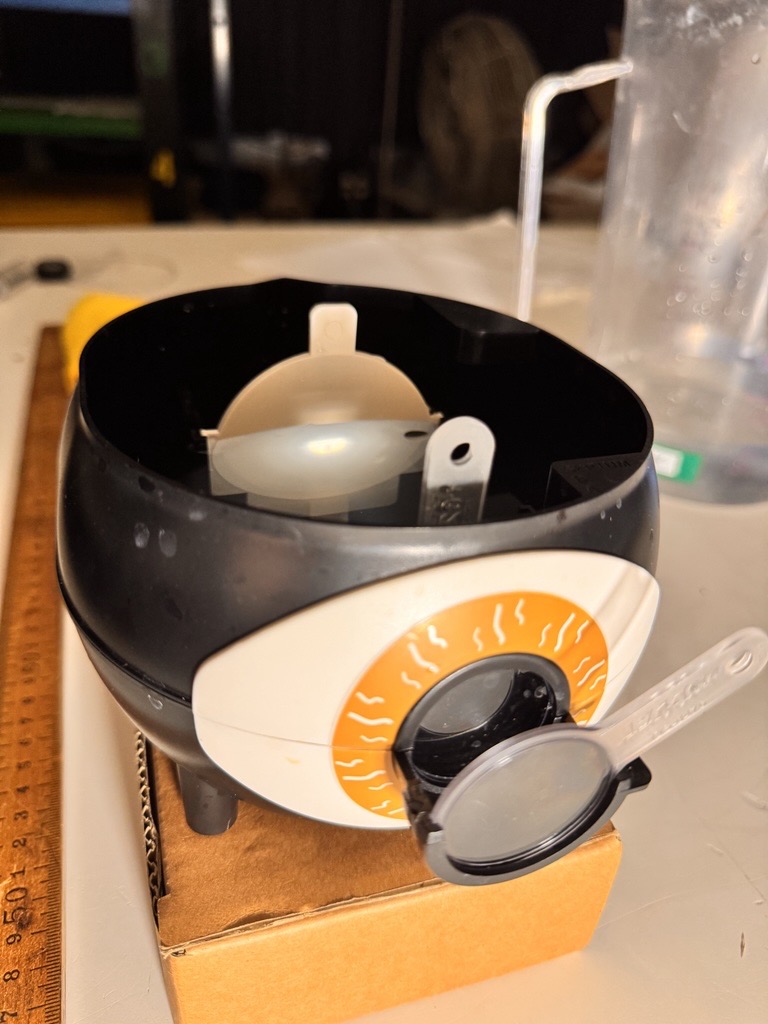

Farsightedness and corrective lens
Farsightedness and corrective lens

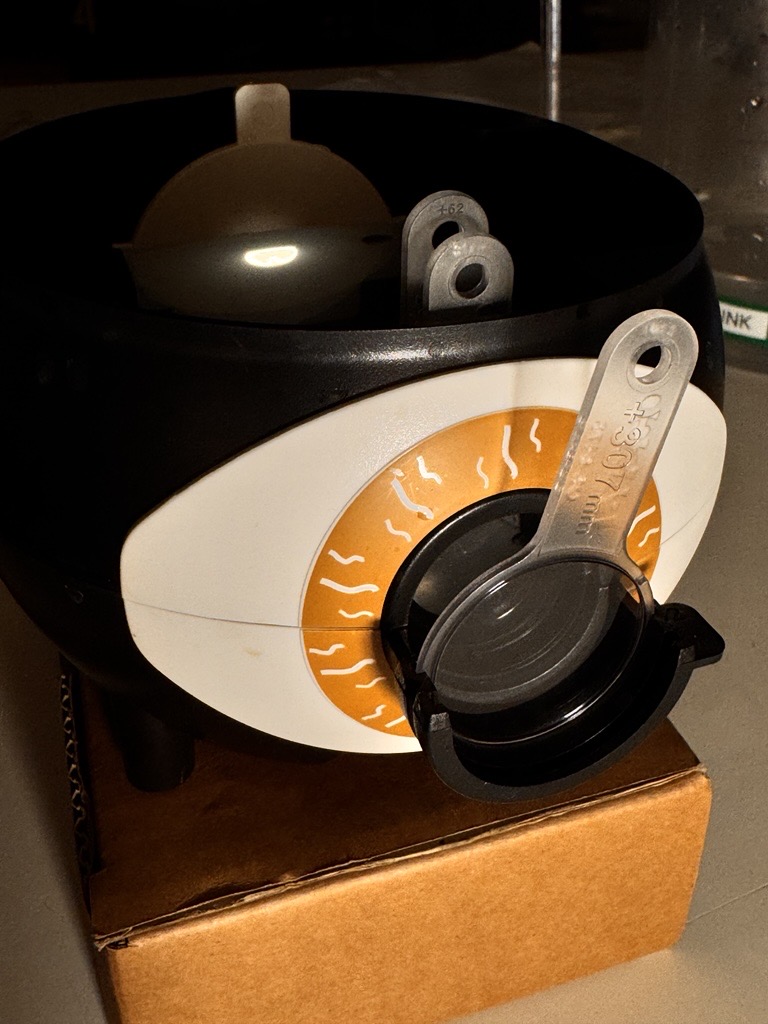

Astigmatism and corrective lens
Astigmatism and corrective lens



Code: 6J11.10


Demo Title: Vision defects and correction


Subject: Physiology


Description:
Demonstrate image formation in human eye for various defects (nearsightedness, farsightedness, astigmatism) and correction with lenses.


Procedure:

  • Turn on light source and show students normal sharp image.
  • Place retina in nearsighted slot and observe defocused image.
  • Add corrective diverging lens of focal length -1000 mm and see sharp image.
  • Place retina in farsighted slot, and again to correct deformed image, place corrective lens of focal length + 400 mm.
  • Place retina in normal slot, and place cylindrical lens of focal length -128 mm in front of lens in septum.
  • Observe distorted image and place cylindrical lens of focal length +307 mm in front of eye to correct this.
