7A50.40 - De Broglie matter waves : resonating wire loop




Code: 7A50.40


Demo Title: De Broglie matter waves : resonating wire loop


Subject: Wave Mechanics


Description:

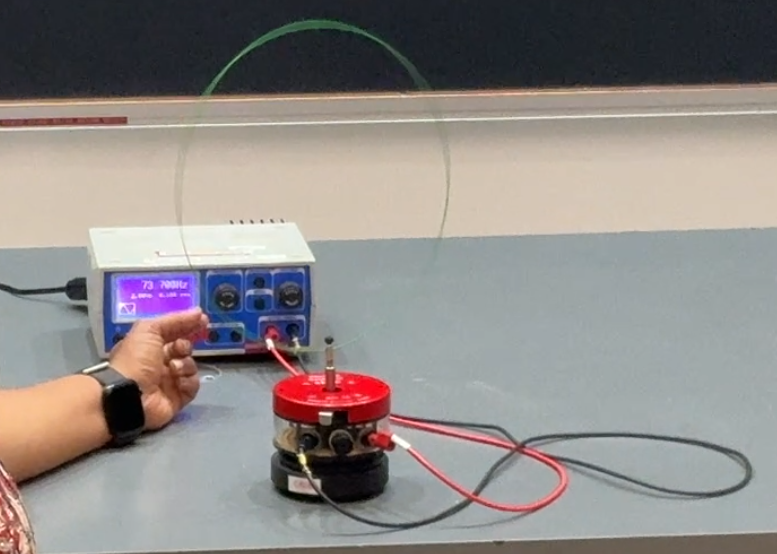

The PASCO Wire Loop will have standing waves at discrete frequencies, each one corresponding to a unique wavelength. Use a wave driver to drive frequency.


Procedure:

Mount the Wave Driver either vertically (upright) or horizontally as desired. Ensure there is sufficient room for the Resonance Wire Loop. 2. If the Wave Driver is mounted horizontally, adjust the banana plug on the Resonance Wire Loop until it is perpendicular to the plane of the loop. 3. Insert the banana plug into the drive post of the Wave Driver. If the Wave Driver is mounted horizontally, make sure the loop is oriented so that the banana plug is at the highest point. 4. Connect the Wave Driver to one of the function generators listed under Additional equipment required. 5. Start driving the Wave Driver at about 5 Hz, with approximately 1 mm of amplitude, and slowly increase the frequency. 6. As the frequency is increased, the wire will begin to vibrate in various modes with an odd number of anti-nodes present. These nodes are a graphic demonstration of how electrons can have a resonant frequency as they orbit the nucleus.
