3B22.10 - Standing Wave with Rope Across the Room




Code: 3B22.10


Demo Title: Standing Wave with Rope Across the Room


Subject: Standing Waves


Description:

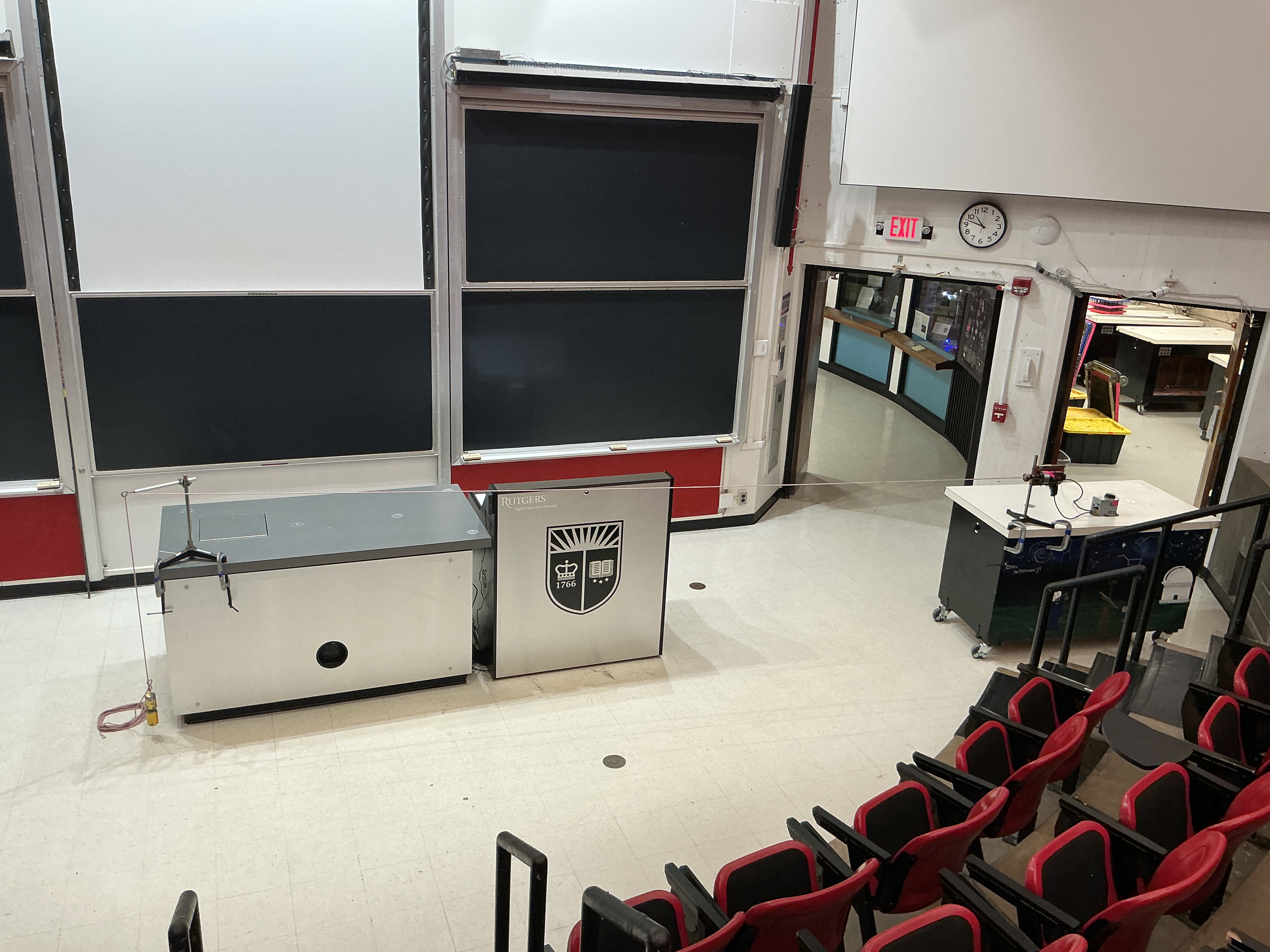

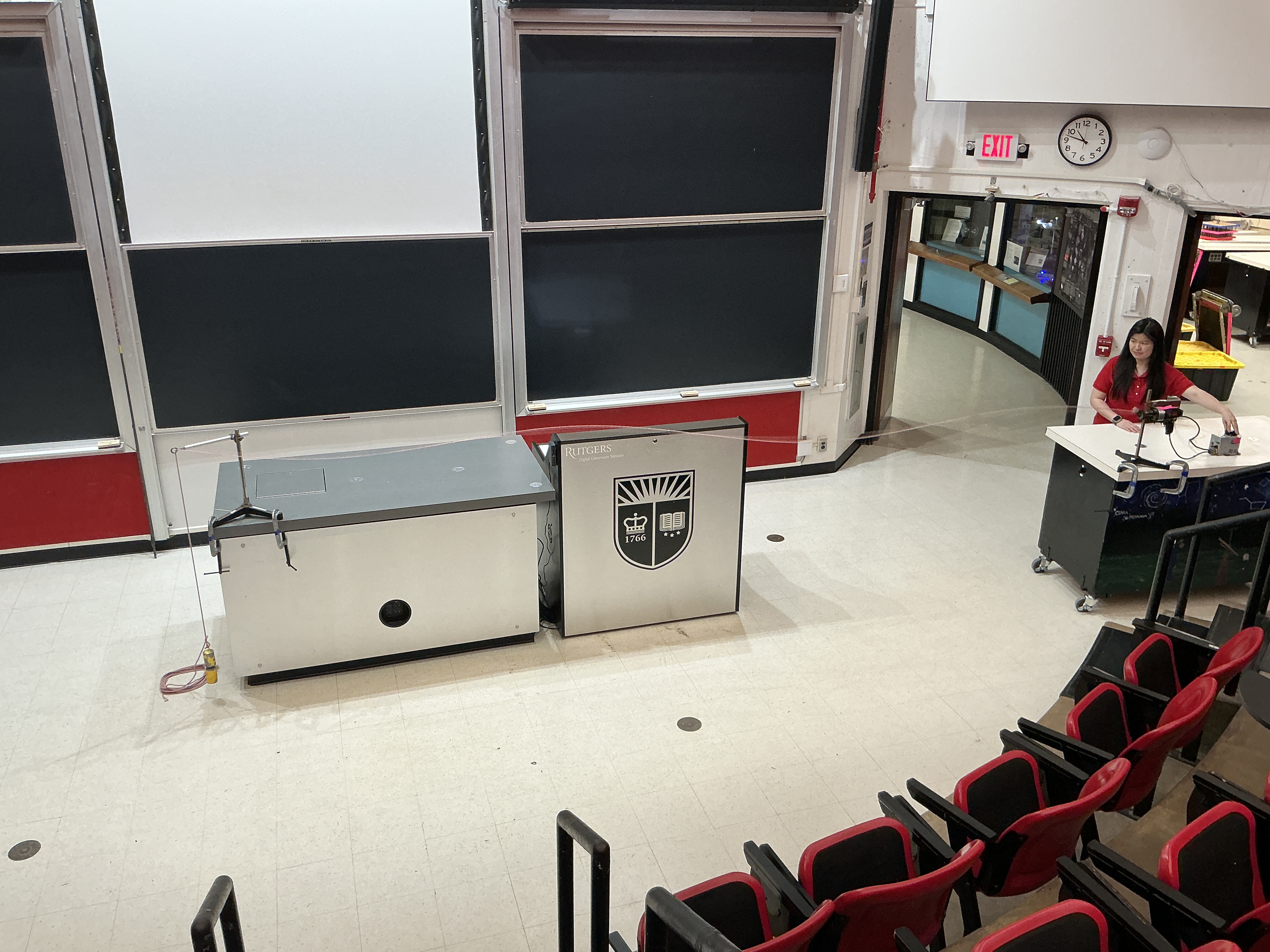

Using a rope attached to a drill and resonator a standing wave is demonstrated.


Procedure:

  • Send a wave through the rope by flicking it with your hand.
  • Turn on the resonator and drill at slow speed.
  • Begin to increase the speed and point out where the nodes form in the rope.
  • Increase the speed and point out the additional nodes which form in the rope.
  • Max out the speed of the drill/resonator and allow audience to examine where the nodes have formed and explain what this means.

  • Video URLs:


    Disclaimer: These demonstrations are provided only for illustrative use by persons affiliated with Rutgers University and only under the direction of a trained instructor or physicist. Rutgers University is not responsible for any demonstrations performed by those using their own or others equipment, or who choose to use this reference material for their own purpose. The demonstrations included here are within the public domain and can be found in materials contained in libraries, bookstores, and through electronic sources. Performing all or any portion of any of these demonstrations, with or without revisions not depicted here, entails inherent risks. These risks include, without limitation, bodily injury (and possibly death), risks to health that may be temporary or permanent and that may exacerbate a pre-existing medical condition, and property loss or damage. Anyone performing any part of these demonstrations, even with revisions, knowingly and voluntarily assumes all risks associated with them.
