5J20.20 - Series vs Parallel (AC Circuit) - Different Bulbs

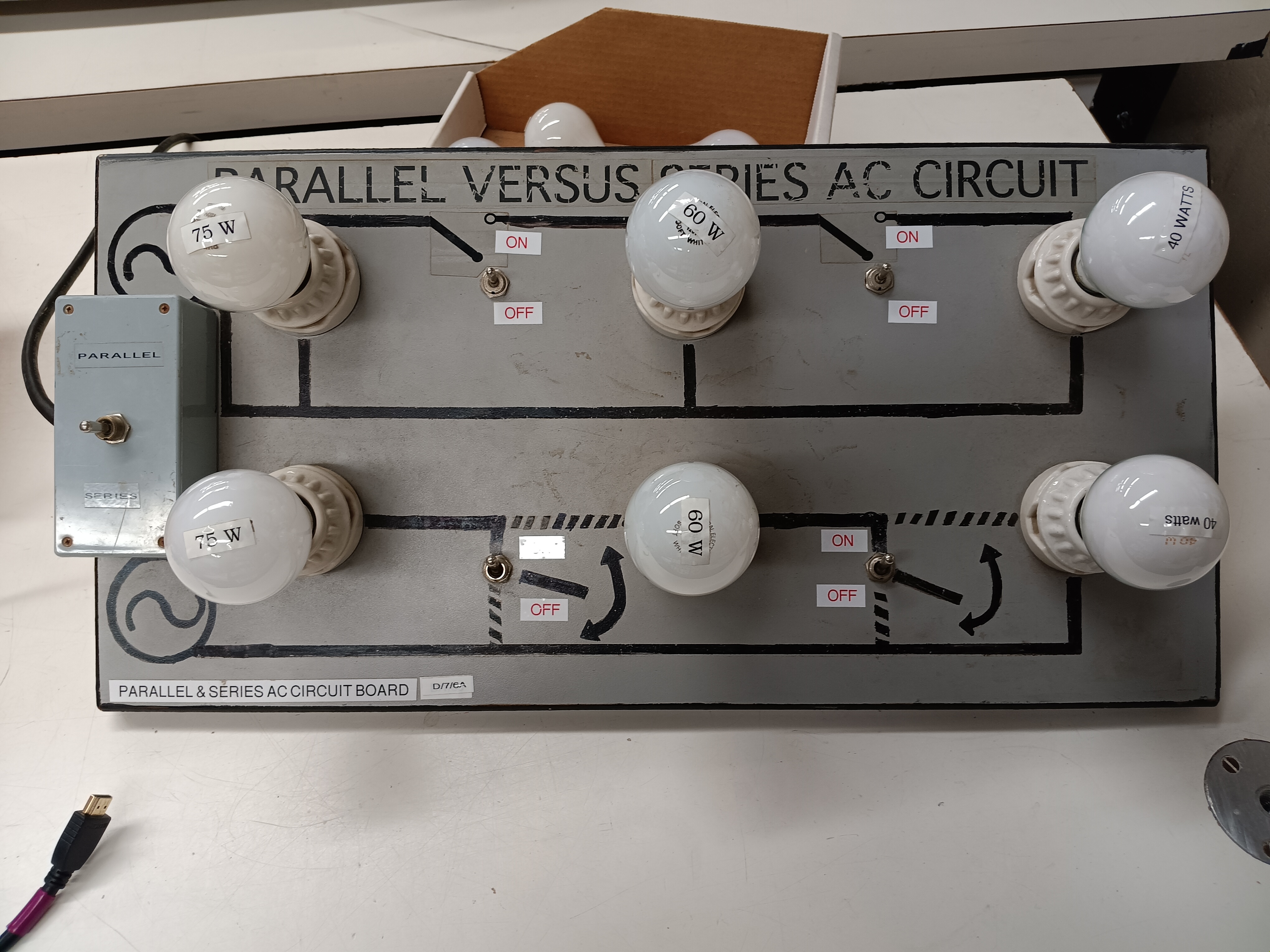

The finished product, demonstrating the bulbs in series.
The finished product, demonstrating the bulbs in series.



Code: 5J20.20


Demo Title: Series vs Parallel (AC Circuit) - Different Bulbs


Subject: LR Circuits


Description:
Two simple circuits employing three lightbulbs of different wattages in series and in parallel further exemplify the differences between parallel and series circuits.


Procedure:

  • First, have the wattages for all of the lightbulbs be the same (75W)
  • Then ask the students to make predictions for how the brightness of the bulbs change depending on whether they are in series or parallel as the bulbs are turned on.
  • Next, replace the bulbs with different wattages for the series and parallel circuit respectively. (40W, 75W, and 100W)
  • Once again, ask for the predictions for what bulb will be the brightest as they are turned on in sequence for both the parallel and series circuits.
  • Lastly, discuss why the bulbs behave in the manner they do for the parallel and series circuits respectively.


Video URL:


Disclaimer: These demonstrations are provided only for illustrative use by persons affiliated with Rutgers University and only under the direction of a trained instructor or physicist. Rutgers University is not responsible for any demonstrations performed by those using their own or others equipment, or who choose to use this reference material for their own purpose. The demonstrations included here are within the public domain and can be found in materials contained in libraries, bookstores, and through electronic sources. Performing all or any portion of any of these demonstrations, with or without revisions not depicted here, entails inherent risks. These risks include, without limitation, bodily injury (and possibly death), risks to health that may be temporary or permanent and that may exacerbate a pre-existing medical condition, and property loss or damage. Anyone performing any part of these demonstrations, even with revisions, knowingly and voluntarily assumes all risks associated with them.
