5B20.30 - Human Faraday Cage




Code: 5B20.30


Demo Title: Human Faraday Cage


Subject: Gauss' Law


Description:

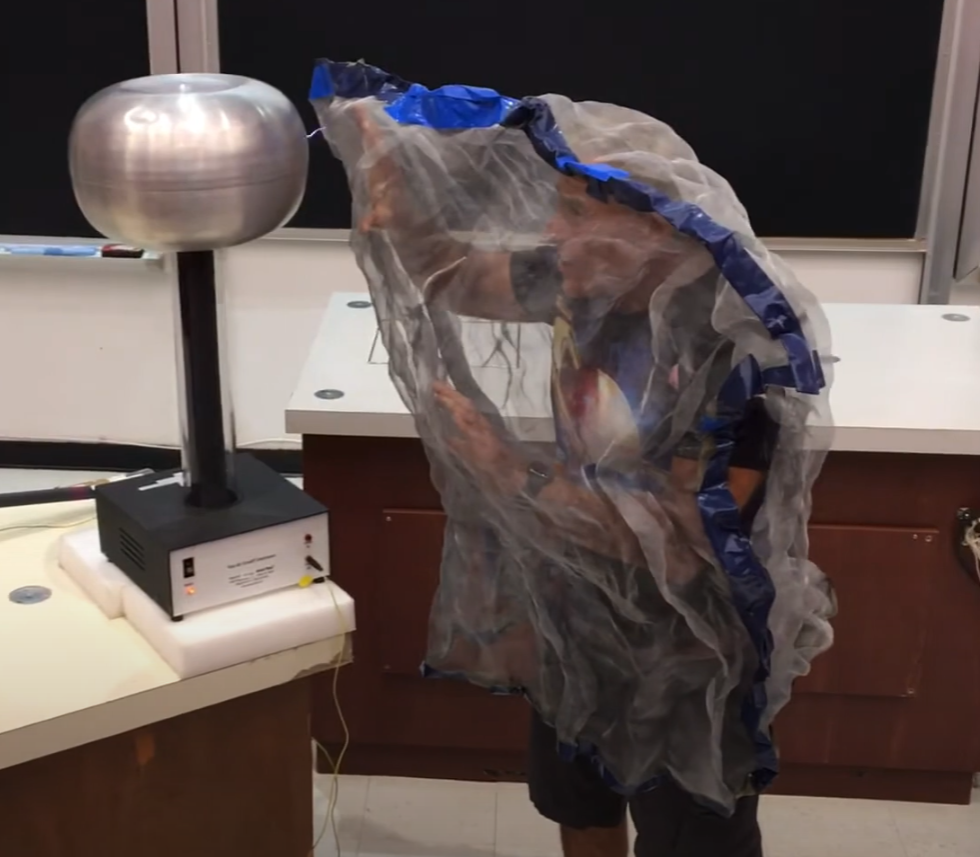

Place a human sized faraday cage (top of D2) over a person, approach a Van de Graaff (D/1/4a) and watch as charge transmitted does not penetrate through the faraday cage.


Procedure:

1. First show that the sparks between the smaller sphere and the Van De Graff sphere by putting them near each other. 2. Then, wear the faraday cage and try to place your hand near the Van De Graff sphere to see the sparks between. *Do not touch Van De Graff just hover near it.*


Video URL:


Disclaimer: These demonstrations are provided only for illustrative use by persons affiliated with Rutgers University and only under the direction of a trained instructor or physicist. Rutgers University is not responsible for any demonstrations performed by those using their own or others equipment, or who choose to use this reference material for their own purpose. The demonstrations included here are within the public domain and can be found in materials contained in libraries, bookstores, and through electronic sources. Performing all or any portion of any of these demonstrations, with or without revisions not depicted here, entails inherent risks. These risks include, without limitation, bodily injury (and possibly death), risks to health that may be temporary or permanent and that may exacerbate a pre-existing medical condition, and property loss or damage. Anyone performing any part of these demonstrations, even with revisions, knowingly and voluntarily assumes all risks associated with them.
