1J30.10 - Newton's Balance




Code: 1J30.10


Demo Title: Newton's Balance


Subject: Resolution of Forces


Description:

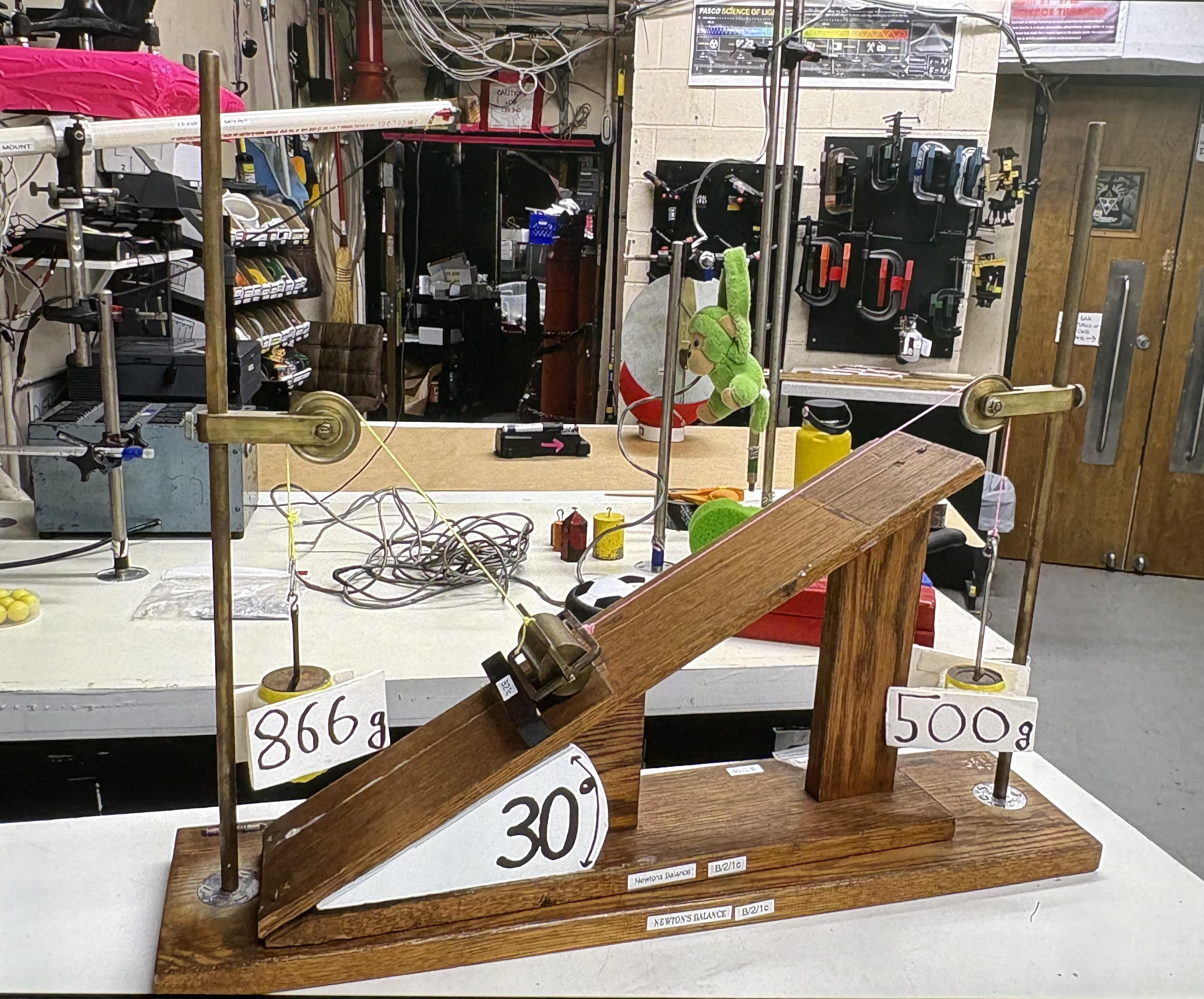

A 3-4-5 triangle holding a block. Add counterweights and remove the incline.


Procedure:

  1. Start with the Table Setup:

    Place the 1 kg mass on the flat table. The normal force acts vertically upward and is equal to the weight of the object (about 1000 grams of force).

  2. Move to the Incline:

    Place the ramp at a 30-degree angle and place the 1 kg mass on the ramp.

  3. Explain the Forces:
    • Normal Force on the Incline: The normal force now acts perpendicular to the ramp, not vertically. It is around 866 grams of force.
    • Force Down the Incline: A force of 500 grams pulls the object down the ramp.
  4. Test the Balance:

    The mass stays in place because the normal force (866 grams) counteracts the downward pull (500 grams), keeping the object balanced.
