1F20.10 - Inertia Balls

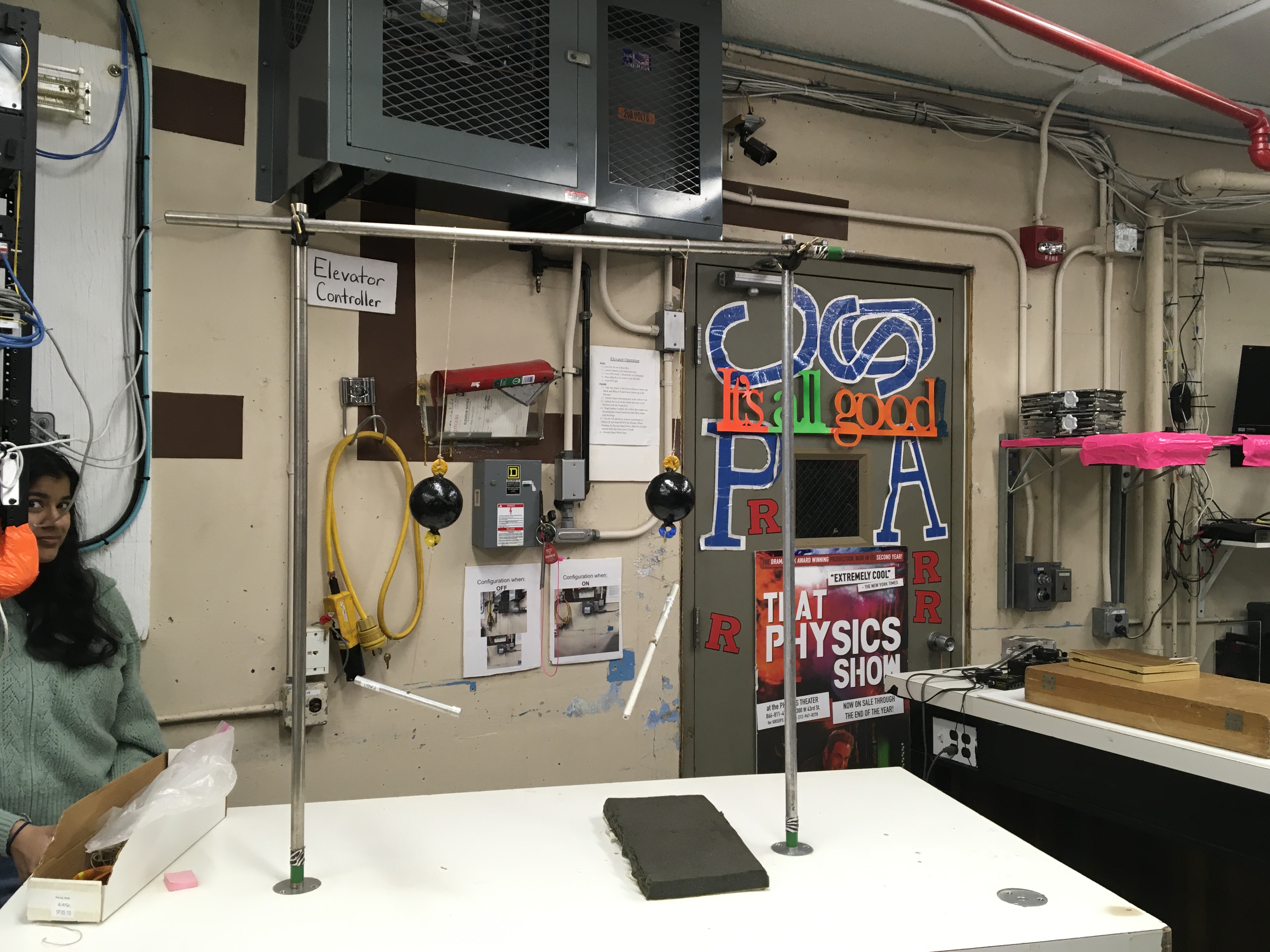

Final Setup
Final Setup



Code: 1F20.10


Demo Title: Inertia Balls


Subject: Inertia of Rest


Description:
Two identical heavy balls on stings pulled at different speeds; If the rod is pulled down slowly, the top thread will break first. If it is pulled down quickly, the bottom thread will break first. When you pull the string slowly the top string feels the weight of the ball, but when you pull fast the balls inertia doesn't allow the force to translate up to the stop string, breaking the bottom string.


Procedure:

  • pull the longest rod attached to the blue taped Ball downwards slowly
  • Show the students that the string breaks
  • Now Pull the short rod attached to the Yellow Taped Ball Fast
  • Show the students how the string is still intact but the bottom one isn't
  • Explain how pulling slowly builds tension therefore the top string would eventually breaks however, when the you pull fast and apply sudden force the bottom one breaks instead because there gets no time for the tension to apply to the top string
